Kuokkakauha

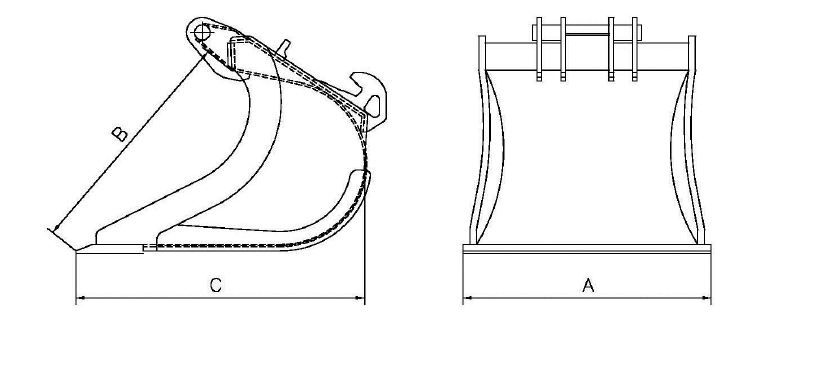

Tuotenro	Malli	A (mm) Leveys	B (mm) Korkeus	C (mm) Syvyys	Etuterä HB 500	Sivuterä HB 400	Vaippa	Sivut	Konesuositus	Paino (kg)
2021	60L	450	760	560	s-16	s-8	s-5	s-6	1,2-5t	70
2022	80L	500	760	560	s-16	s-8	s-5	s-6	2,6-3t	110

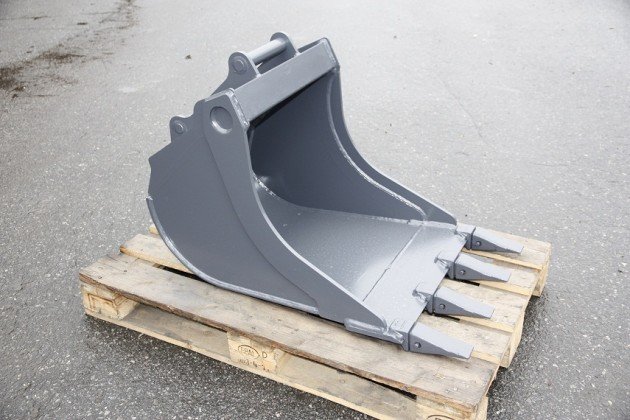

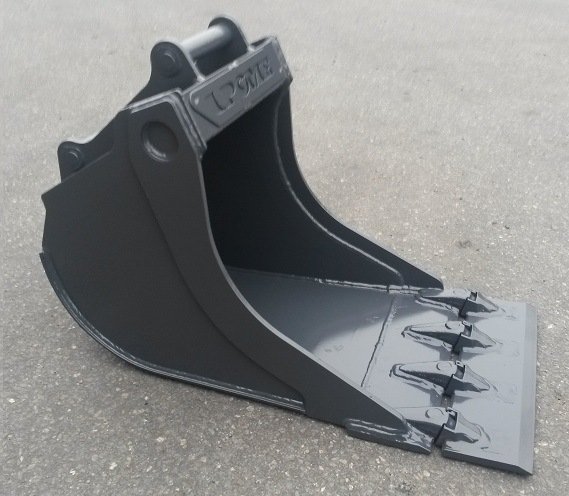

2023	120L	600	1000	850	s-20	s-10	s-5	s-6	3-5t	120
2031	255L	600	950	1050	s-20	s-16	s-8	s-8	5-10t	240
2032	300L	730	950	1050	s-20	s-16	s-8	s-8	6-10t	280
2033	360L	820	950	1050	s-20	s-16	s-8	s-8	8-10t	290
2034	400L	920	950	1050	s-25	s-16	s-8	s-8	8-12t	310
2035	500L	920	1000	1050	s-25	s-16	s-8	s-8	9-13t	375
1011	650L	850	1135	1260	s-30	s-20	s-10	s-10	12-14t	550
1012	850L	950	1135	1260	s-30	s-35	s-10	s-10	15-18t	680
1013	1000L	1000	1270	1350	s-40	s-30	s-12	s-12	16-21t	810
1014	1200L	1100	1270	1350	s-40	s-30	s-12	s-12	19-24t	860

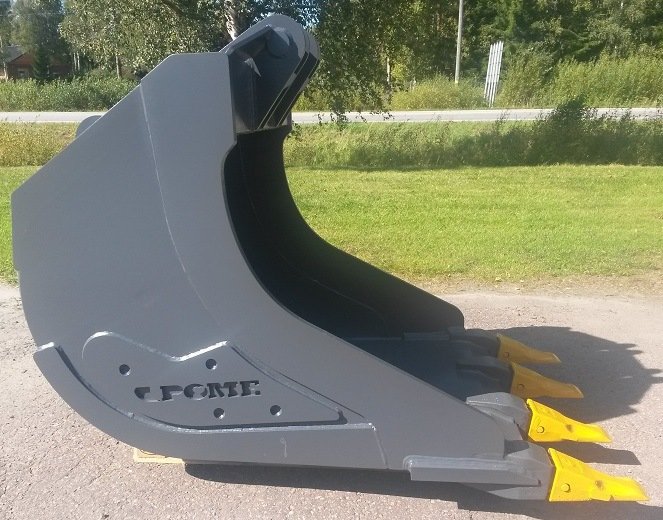

1015	1500L	1300	1420	1685	s-50	s-40	s-12	s-12	25-30t	980
1016	1800L	1400	1420	1685	s-50	s-40	s-12	s-15	28-32t	1380

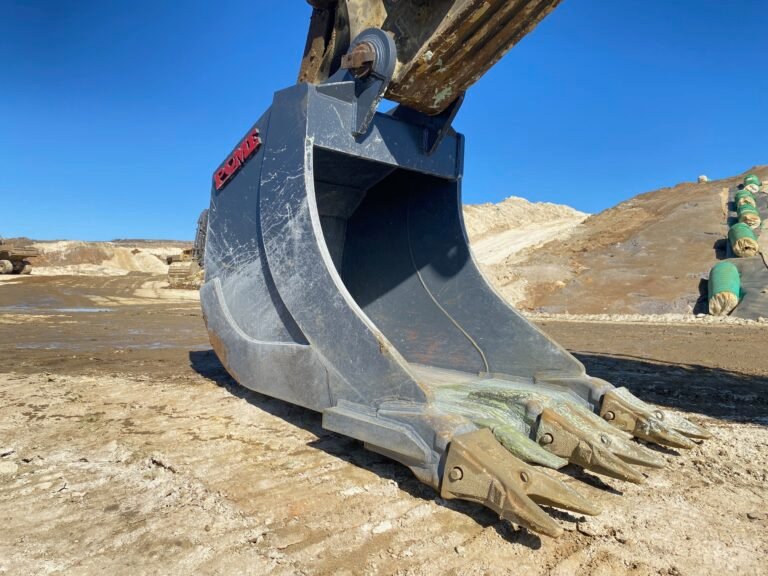

1017	2000L	1600	1440	1700	s-60	s-40	s-12	s-15	32-38t	1650
1018	2500L	1700	1688	2000	60	50
1019	3000L	1800	1688	2000	60	50

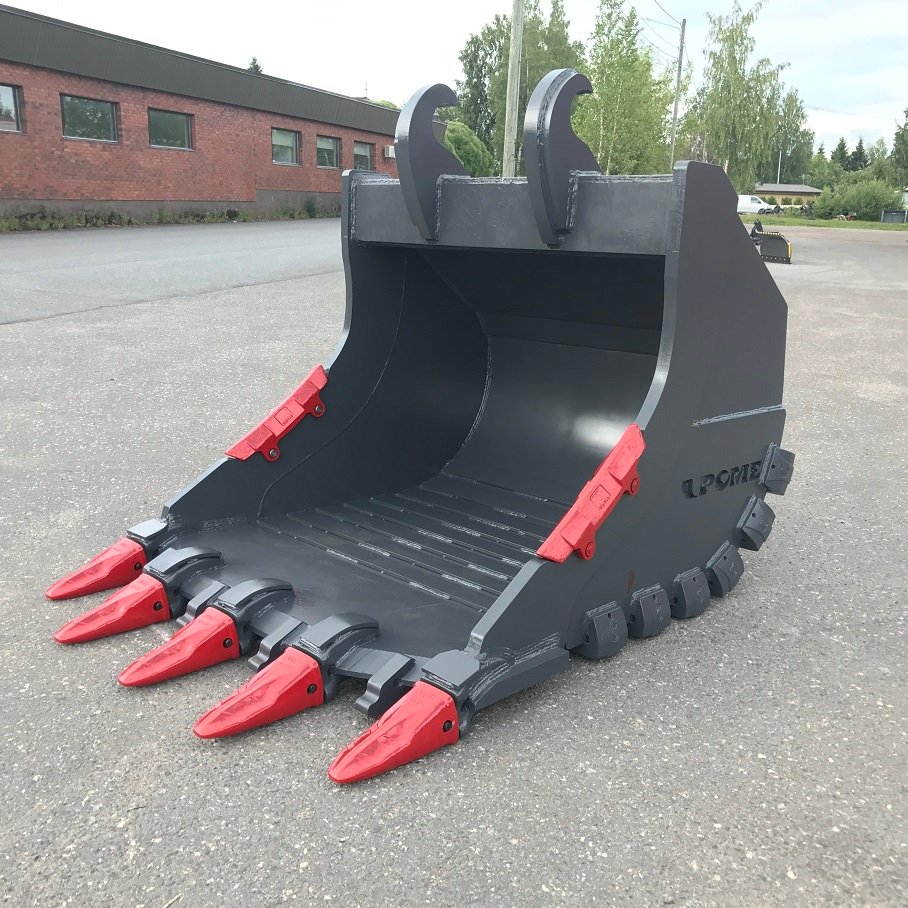

1020	3500L	1950	1750	2180	70	60
